Standard Utility Tandem Axle Utility
*Trailers pictured may have upgrade options, call for more information.
| MODEL | DECSRIPTION |
|---|---|
| SUTA 5X8 | 5′ X 8′ |
| SUTA 5X12 | 5′ X 12′ |
| SUTA 5X14 | 5′ X 14′ |
| SUTA 5X16 | 5′ X 16′ |
| SUTA 77X10 | 77″ X 10′ |
| SUTA 77X12 | 77″ X 12′ |
| SUTA 77X14 | 77″ X 14′ |
| SUTA 77X16 | 77″ X 16′ |
| SUTA 77X18 | 77″ X 18′ |
| SUTA 77X20 | 77″ X 20′ |
Custom Sizes Available
STANDARD FEATURES
| GVW | 7000# (must purchase brakes on one axle) |
| AXLE | 2/3500# |
| TIRES & WHEELS | 15″ 205/75D15 15X5 – SILVER MODS |
| COUPLER | 2 5/16″ A-FRAME |
| JACK | 2000# TOPWIND |
| TONGUE | 4″ CHANNEL (for 14′ + wrapped tongue incl.) |
| FRAME | 2 X 3 X 3/16 ANGLE |
| TOP RAIL | 2 X 3 X 3/16 ANGLE |
| FLOOR | 2X6 WEATHER TREATED WOOD |
| FENDER | 9X72 STRAIGHT (WITH ALUMINUM STONEGUARD) |
| LIGHTS | LED |
| WIRING | JACKETED/NOT EXPOSED |
| 14′ & UP | WRAP AROUND TONGUE |
Standard Utility Single Axle Utility
*Trailers pictured may have upgrade options, call for more information.
| MODEL | DECSRIPTION |
|---|---|
| SUSA 4X8 | 4′ X 8′ |
| SUSA 5X10 | 5′ X 10′ |
| SUSA 5X12 | 5′ X 12′ |
| SUSA 5X14 | 5′ X 14′ |
| SUSA 77X10 | 77″ X 10′ |
| SUSA 77X12 | 77″ X 12′ |
| SUSA 77X14 | 77″ X 14′ |
Custom Sizes Available
STANDARD FEATURES
| GVW | 2990# |
| AXLE | 3500# |
| TIRES & WHEELS | 15″ 205/75D15 15X5 – SILVER MODS |
| GATE | 4′ FOLD IN RAMP GATE (INCLUDED) |
| COUPLER | 2″ A-FRAME |
| JACK | 2000# TOPWIND |
| TONGUE | 4″ CHANNEL |
| FRAME | 2 X 3 X 3/16 ANGLE |
| TOP RAIL | 2 X 2 X 1/8 ANGLE |
| FLOOR | 2X6 WEATHER TREATED WOOD |
| FENDER | 9X32 STRAIGHT (WITH ALUMINUM STONEGUARD) |
| LIGHTS | LED |
| WIRING | JACKETED/NOT EXPOSED |

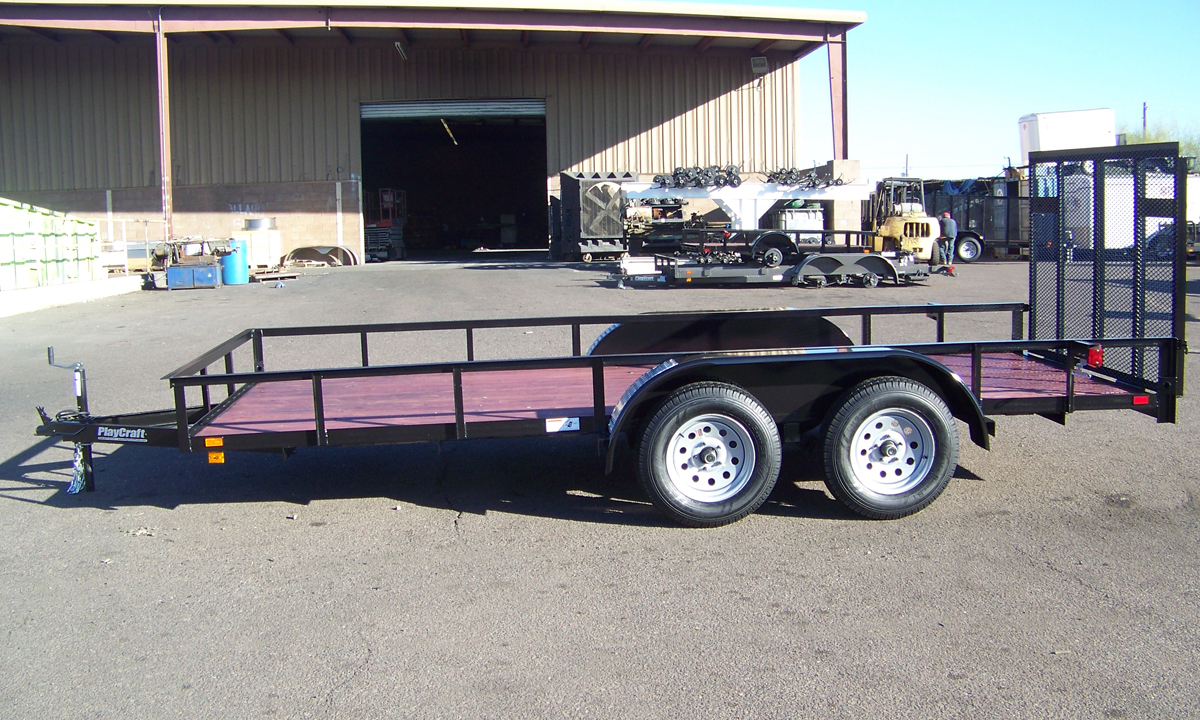

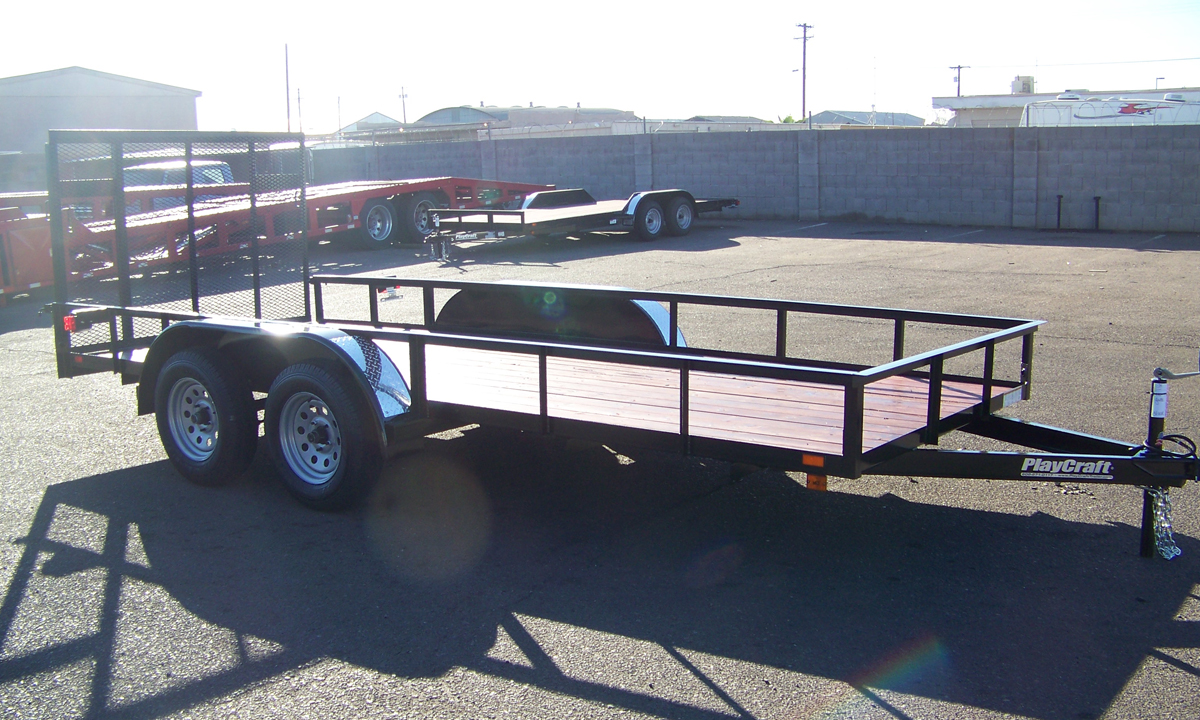

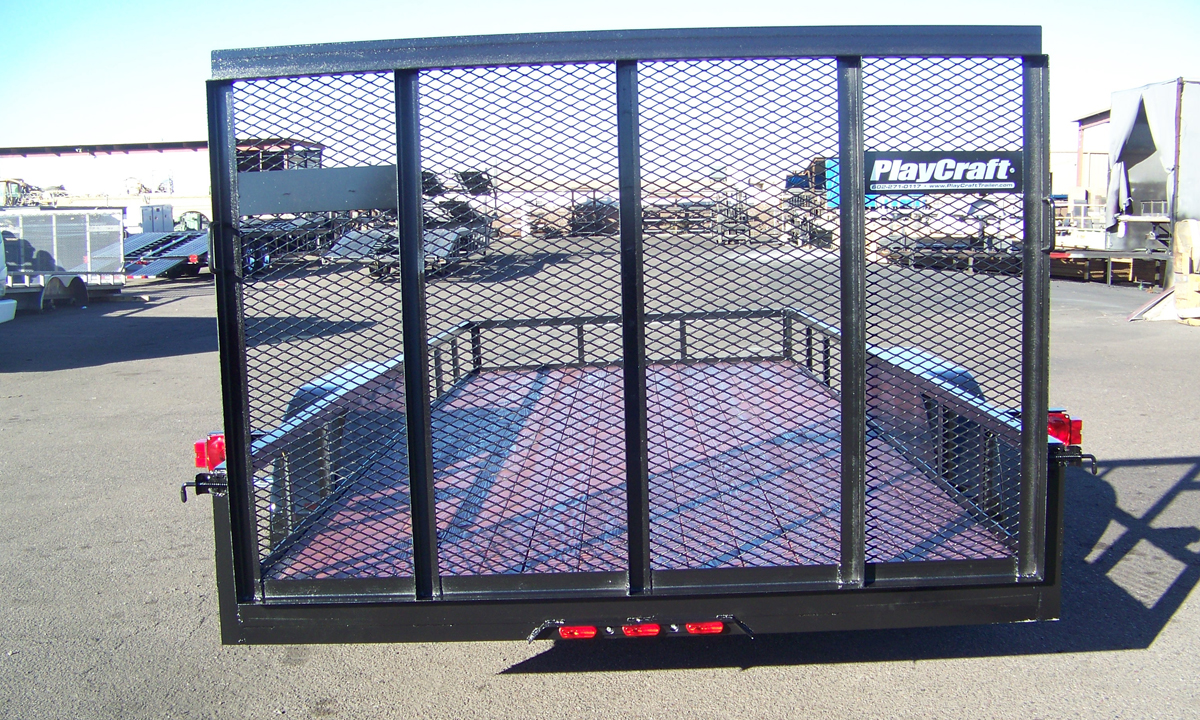

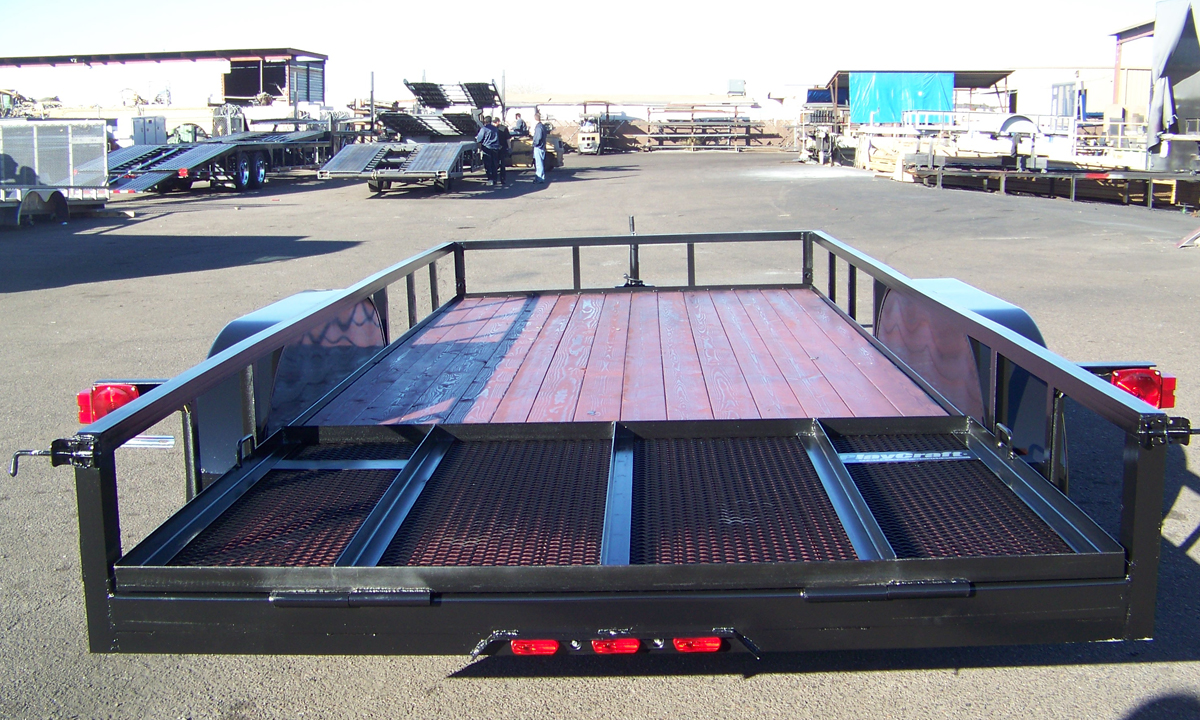

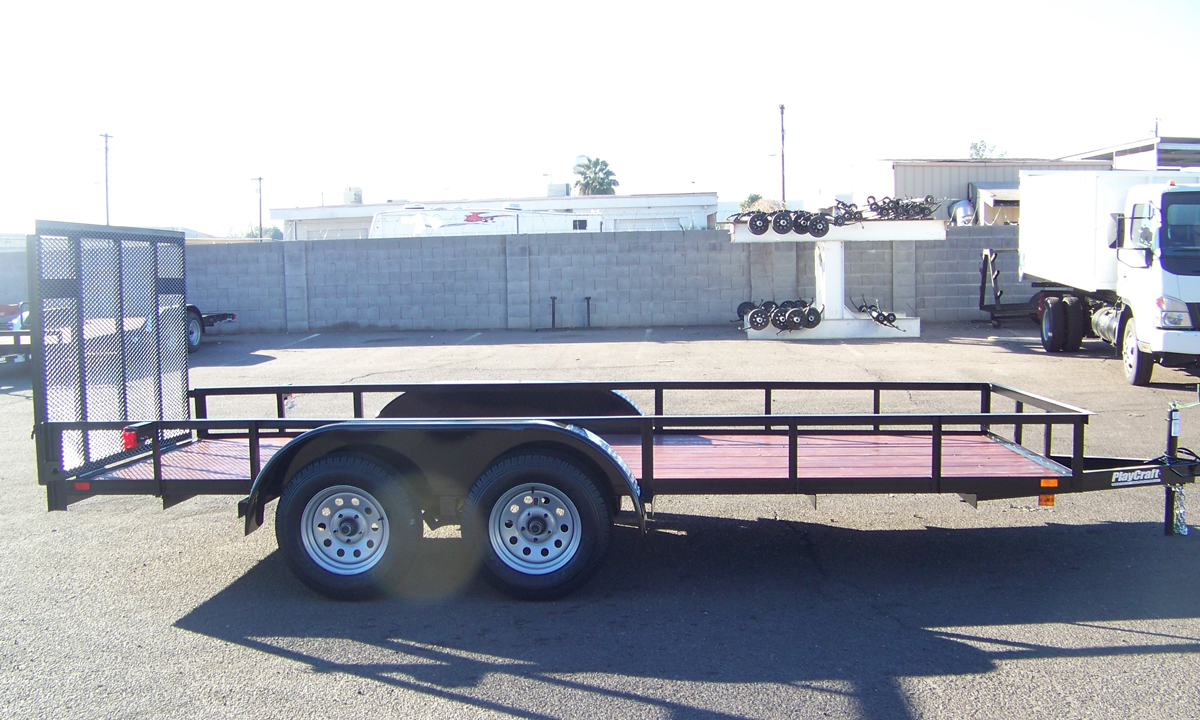

Light Utility Trailer
*Trailers pictured may have upgrade options, call for more information.
| MODEL | DECSRIPTION |
|---|---|
| LU 77X14 | 77′ X 14′ |
| LU 77X16 | 77′ X 16′ |
Only these sizes are available.
STANDARD FEATURES
| GVW | 2990# |
| AXLE | 2/3500# |
| TIRES & WHEELS | 15″ 205/75D15 15X5 – SILVER MODS |
| COUPLER | 2″ A-FRAME |
| JACK | 2000# TOPWIND |
| TONGUE | 4″ CHANNEL |
| FRAME | 2 X 3 X 3/16 ANGLE |
| TOP RAIL | 2 X 2 X 1/8 ANGLE |
| FLOOR | 2X6 WEATHER TREATED WOOD |
| FENDER | 9X72 STRAIGHT (WITH ALUMINUM STONEGUARD) |
| LIGHTS | NON LED |
| WIRING | JACKETED/NOT EXPOSED |
Pipe Trailer
*Trailers pictured may have upgrade options, call for more information.
| MODEL | DECSRIPTION |
|---|---|
| PP 77X12 | 77′ X 12′ |
| PP 77X14 | 77′ X 14′ |
| PP 77X16 | 77′ X 16′ |
| PP 77X18 | 77′ X 18′ |
| PP 77X20 | 77′ X 20′ |
Custom Sizes Available
STANDARD FEATURES
| GVW | 7000# |
| AXLE | 2/3500# |
| BRAKES | ONE ELECTRIC BRAKE, BREAKAWAY KIT, 7 WAY PLUG & HARNESS |
| TIRES & WHEELS | 15″ 205/75D15 15X5 – SILVER MODS |
| COUPLER | 2 5/16″ A-FRAME |
| JACK | 2000# TOPWIND |
| TONGUE | 4″ CHANNEL (for 14′ + wrapped tongue incl.) |
| FRAME | 3 X 3 X 3/16 ANGLE |
| TOP RAIL | 2 3/8″ PIPE |
| FLOOR | 2X6 WEATHER TREATED WOOD |
| FENDER | 9X72 TEARDROP (WITH ALUMINUM STONEGUARD) |
| LIGHTS | LED |
| WIRING | JACKETED/NOT EXPOSED |
| RAMPS | 5″ TUBING RAMPS & STORAGE |
