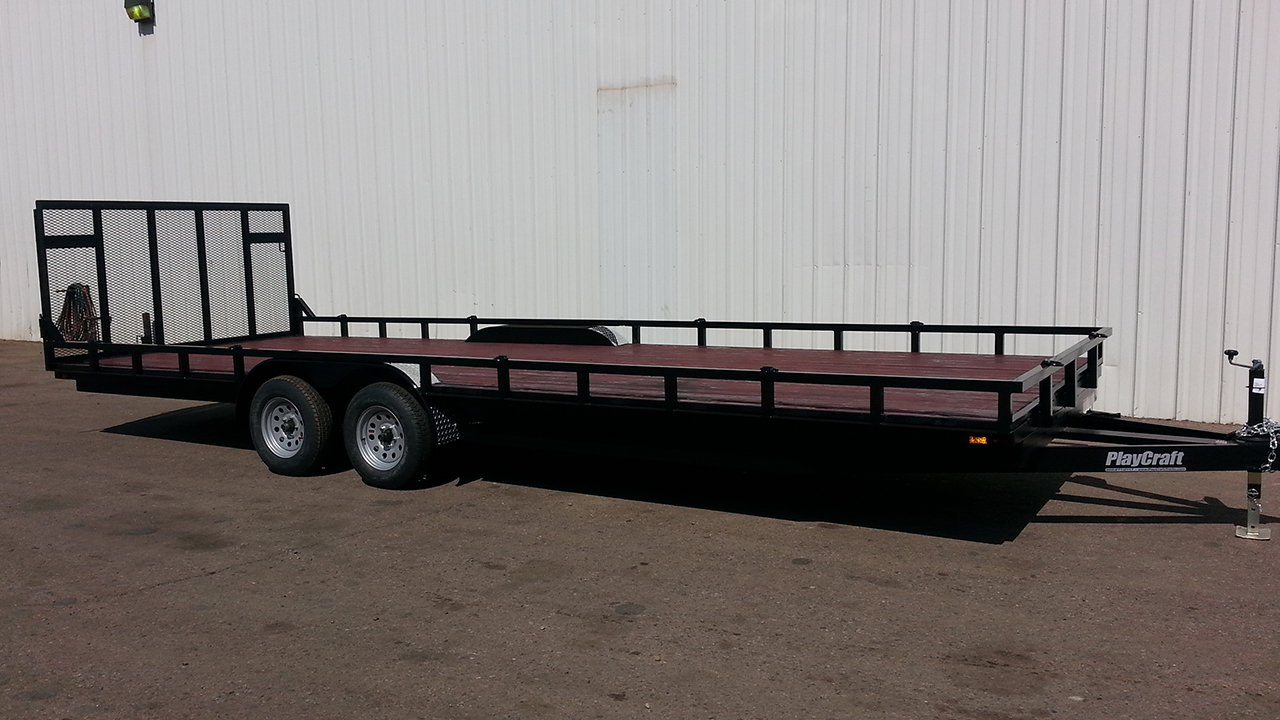

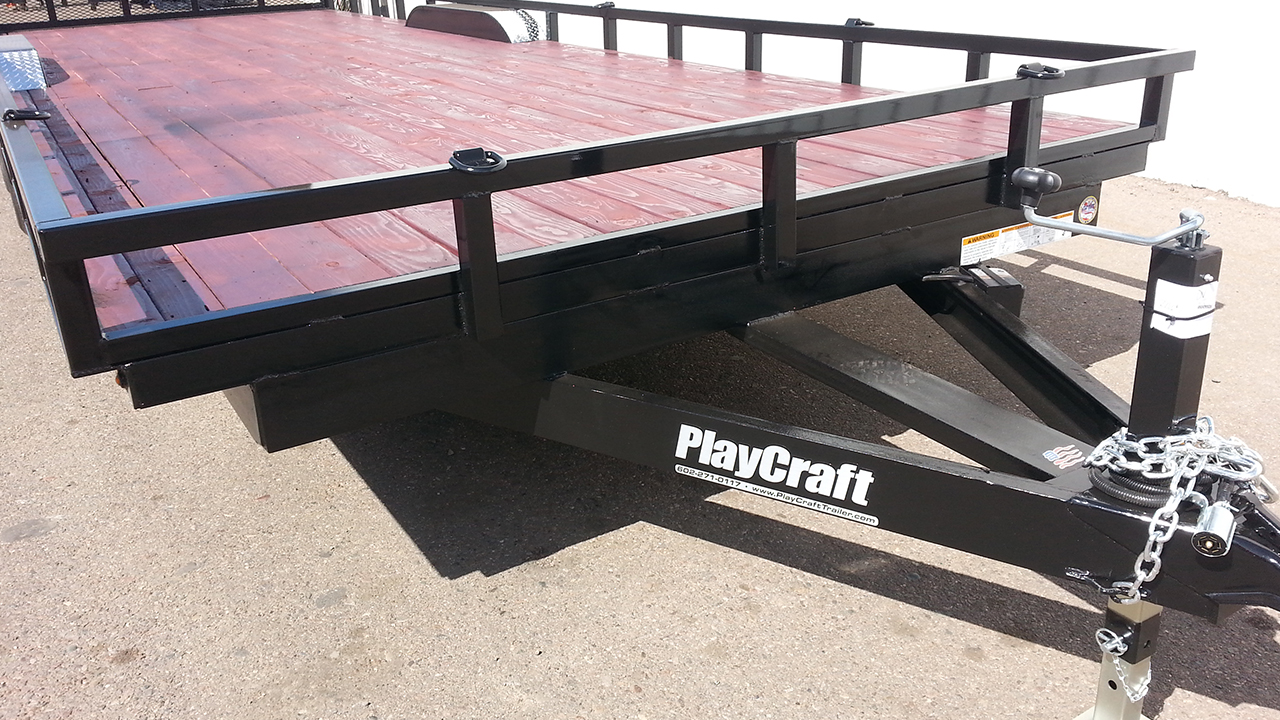

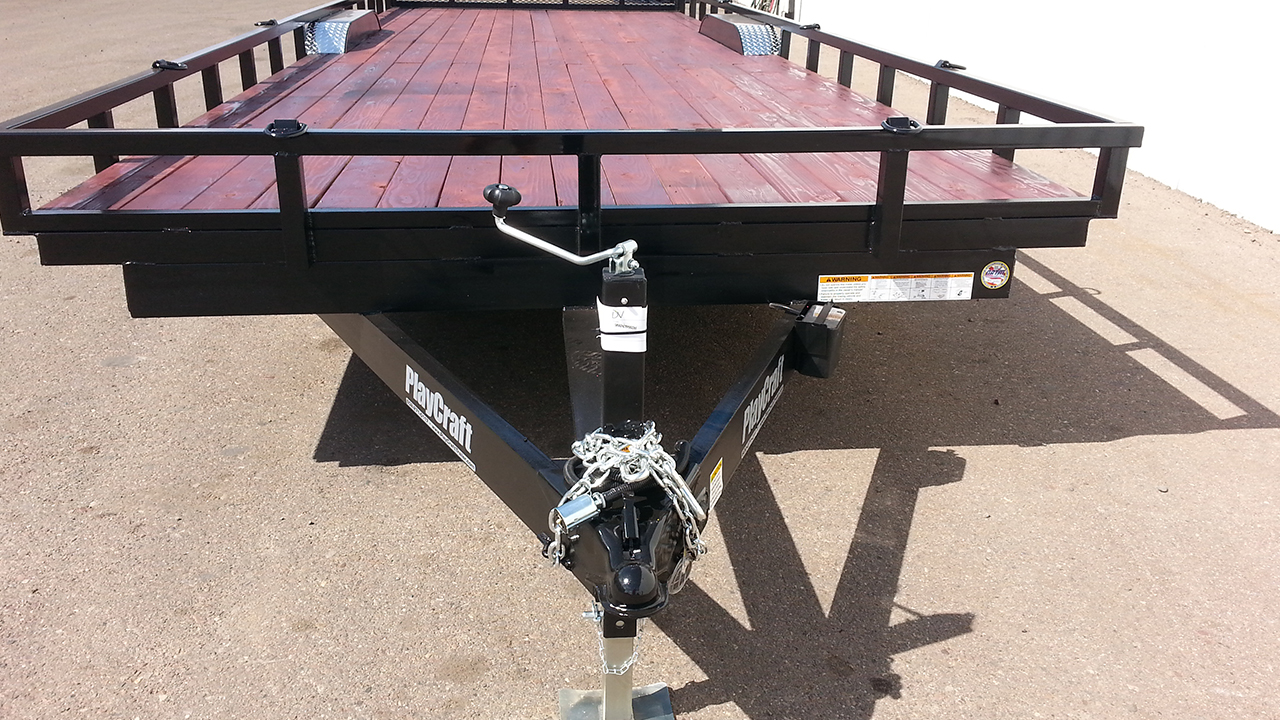

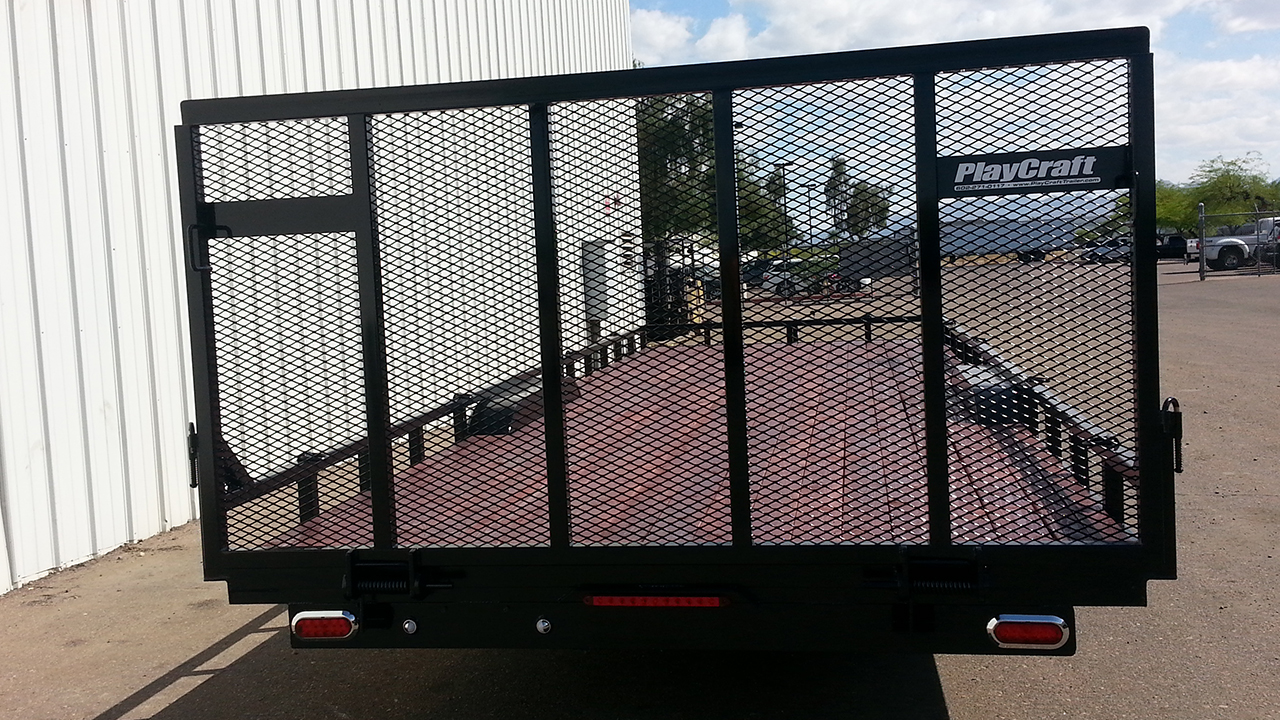

RV Special
*Trailers pictured may have upgrade options, call for more information.
| MODEL | DESCRIPTION |
|---|---|
| RV 12 | 82″ X 12′ |
| RV 14 | 82″ X 14′ |
| RV 16 | 82″ X 16′ |
| RV 18 | 82″ X 18′ |
| RV 20 | 82″ X 20′ |
| RV 22 | 82″ X 22′ |
| RV 24 | 82″ X 24′ |
Custom Sizes Available
STANDARD FEATURES
| GVW | 7000# |
| AXLES | 2/3500# |
| BRAKES | ONE ELECTRIC BRAKE, BREAKAWAY KIT, 7 WAY PLUG & HARNESS |
| TIRES & WHEELS | 15″ 205/75D15 15X5 – SILVER MODS |
| COUPLER | 2 5/16″ A-FRAME |
| JACK | MINI DROP LEG JACK 7000# |
| TONGUE | 4″ CHANNEL |
| FRAME | 5″ CHANNEL |
| TOP RAIL | 2 X 2 TUBING |
| REAR GATE | 4′ EXPANDED METAL W/ SPRING ASSIST |
| FLOOR | 2 X 6 WEATHER TREATED WOOD |
| TIE DOWNS | 1/2″ D-RINGS |
| WIDTHS | 96″ BED BETWEEN RAIL, 82″ BED BETWEEN FENDERS, 102″ OVERALL WIDTH |
| FENDER | 9 X 72 TEAR DROP (WITH ALUMINUM STONEGUARD) |
| LIGHTS | LED |
| WIRING | JACKETED/NOT EXPOSED |
| 14′ & UP | WRAP AROUND TONGUE |
